MCRT® 94000V Bearingless Rotary Thrustmeters With Analog, Digital & Frequency Outputs

Model #: MCRT® 94000V
Description:

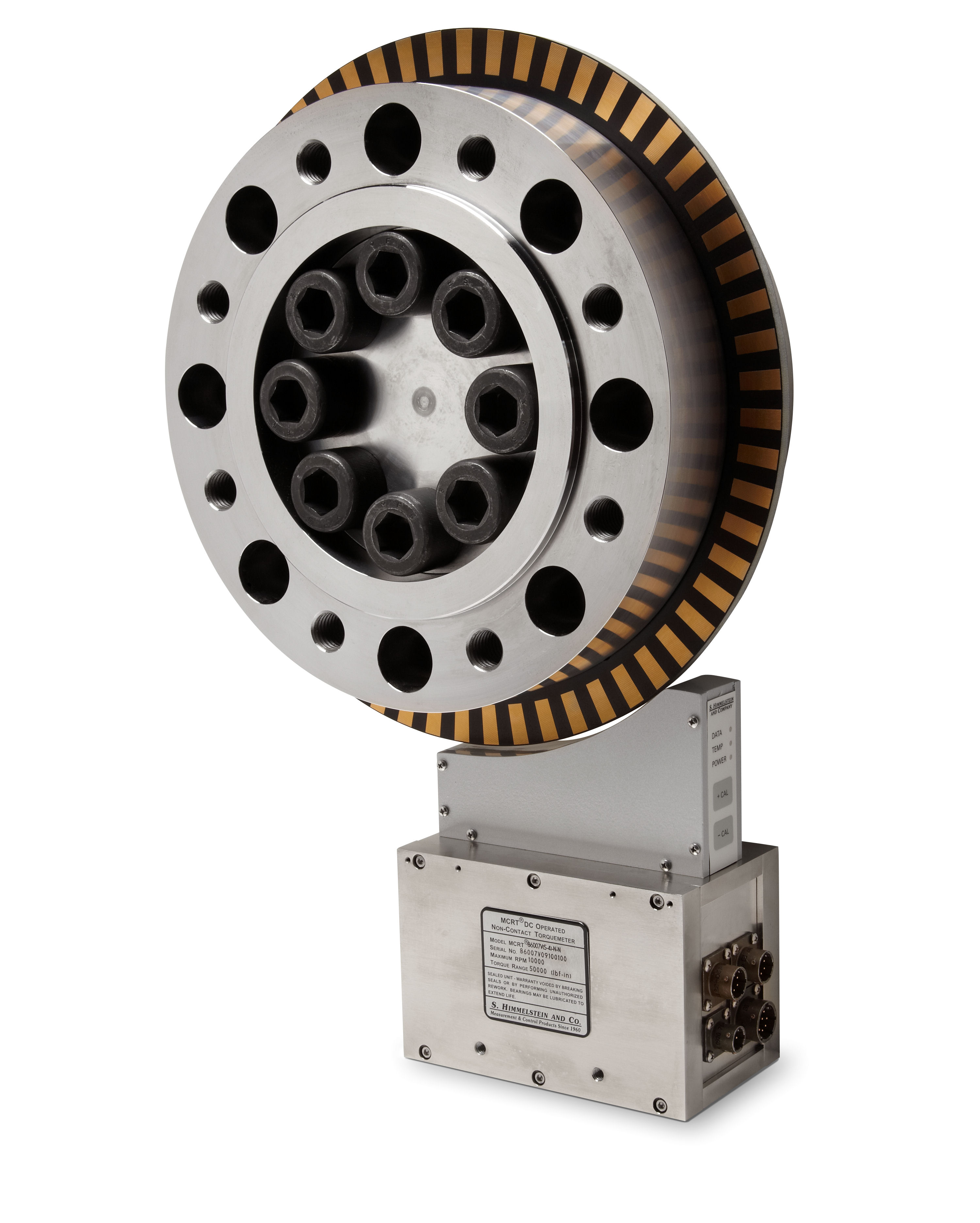

Bearingless Rotary Thrustmeters

Data Sheet
Quick Start Installation Guide
Product Manual
Catalog Outline
Request Quote

Features

  • Thrust Ranges from 500 to 100,000 lbf (2.2 to 445 kN)
  • Low Thrust Error, Tested and Documented
  • Transmits High Torques with Low Crosstalk
  • 200% Thrust Overload
  • Simple to Install and Operate
  • Optional Speed Output Signal
  • ISO 17025 Accredited Calibration


Ranges

Model #
MCRT® 94002V(5-2)
Nm
2.22
Lbf-in
500
Model #
MCRT® 94002V(1-3)
Nm
4.45
Lbf-in
1000
Model #
MCRT® 94002V(2-3)
Nm
8.90
Lbf-in
2000
Model #
MCRT® 94004V(1-4)
Nm
44.50
Lbf-in
10000
Model #
MCRT® 94004V(2-4)
Nm
89.00
Lbf-in
20000
Model #
MCRT® 94007V(5-4)
Nm
222.00
Lbf-in
50000
Model #
MCRT® 94007V(1-5)
Nm
445.00
Lbf-in
100000
Code N
Combined Error (% of Range)
≤±0.8
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002
Code C
Combined Error (% of Range)
≤±0.4
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.0015
Code J
Combined Error (% of Range)
≤±0.05
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.0015

Specs

Mechanical Overload:
200%
Analog Output:
±10 Vdc with ±15 Vdc overrange
Digital Output:

Thrust and Temperature with units of measure over RS232C/RS422/RS485/USB

Compensated Range ˚F/˚C:
+75 to +175/+24 to +79.4
Nominal Overange (% of Range):
200%
Usable Range ˚F/˚C:
-25 to +185/-31 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1 kHz in thirteen 1-2-5 steps, plus 3 kHz
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Rotor to Stator Maximum Misalignment (inches/mm):
"Axial: ±0.4/±10.2
Radial: 0.3/7.6"
Frequency Modulated Output:
10±5/10±20/40±20 kHz; field changeable; TTL square wave
Power Supply:

10 to 26 Vdc @ 6 to 11 Watts nominal

Available Options

  • Enhanced Performance (Code C)
  • Ultra-Precision Performance (Code J)
  • Magnetic Speed Pickup (Code Z)
  • Optical Speed Pickup (Code O)
  • Enhanced Speed Rating (Code H)

Accessories

  • Model 703+ Instrument - Thrust Display Only
  • Model 723+ Instrument - Thrust and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Power Supply with Tinned Leads
224-8362-XX
Thrust to 703+ or 723+
224-8430-XX
Speed to 723+
224-5327V-XX
Analog Output to Tined Leads
224-8358-XX
I/O & FM Output to Tinned Leads
224-8369-XX
Speed to Tiinned Leads
224-5347-XX
RS232
224-8359-XX
RS422/RS485
224-8360-XX
