Signal Conditioners

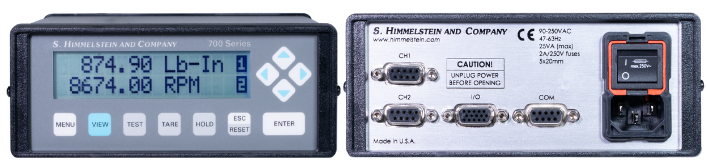

700 Series Precision Instruments

Configure Your Signal Conditioner

Building on decades of experience with strain gages, S. Himmelstein and Company has engineered a range of high-performance single- and dual-channel signal conditioners. These will maximize the quality of results from any data-acquisition system.

What Is a Signal Conditioner?

Signals from sensors such as strain gages, thermocouples, accelerometers and RTDs are small, often noisy and always hard to measure. Signal conditioning instruments improve accuracy by filtering, amplifying and linearizing these sensor outputs. When excitation is needed — as for strain gages and RTDs — a signal conditioner delivers a clean input to help maximize output signal quality.

The purpose of a signal conditioner is to convert an electronic signal into another form. Signals can then be more easily read by certain types of instrumentation. This may involve amplifying, linearizing or filtering the signal. By facilitating easier transmission of data between components, greater precision in data collection and machine control is enabled. For example, investing in a strain gage signal conditioner makes the signal generated by these instruments more usable and provides more accurate information.

Read on to learn more about signal conditioning instruments and what they can do within your facility’s systems.

Understanding Signal Conditioning Equipment

Many measurement devices output very small current, voltage or frequency signals. A signal conditioner brings these outputs within a range that the acquisition equipment can handle. That usually involves amplification, though sometimes attenuation is needed. At the same time, conditioning removes spurious or unwanted noise without adding to or subtracting from the signal. This improves signal quality to better ensure accurate and repeatable data capture and analysis.

The Wheatstone bridge arrangement used in strain gages is an example. Without conditioning, accurate and repeatable measurement would be impossible. In addition to sensor excitation, the strain gage conditioner provides amplification and filtering that boosts the signal to usable levels.

Other Applications for Signal Conditioning Instruments

Any sensor producing a small output needs signal conditioning. Examples include pulse output speed pickups, flow meters, LVDTs, and rotary and linear encoders. These are widely used in process control and often form a key component of PID systems. Load cells are another example — as is any voltage output transducer or current output device.

The Strain Gage Signal Conditioner

While useful in numerous instrumentation and data-acquisition applications, our signal conditioners incorporate the experience gained through decades of strain gage engineering. The heart of torque measurement systems — precise control over excitation voltage — is essential, as this drives the change in output voltage.

S. Himmelstein and Company torque measurement systems use a rotary transformer to get signals out of and excitation into the torque sensor. With the extremely low resistances involved, this needs a highly specialized strain gage signal conditioner for accurate torque measurement.

Precision Signal Conditioning Instruments

We design and build a range of single- and two-channel signal conditioners. These feature clear displays for ease of setup and built-in data acquisition and control functions. Our signal conditioners support an extensive range of measurement devices through features such as:

  • Auto-scaled selectable voltage and current analog output
  • Serial communications interface
  • User-assignable logic I/O

When you need fast and dependable readings, you can rely on signal conditioners from S. Himmelstein and Company. Our highly skilled employees build the best products available at their price point and our after-sales service and support is second-to-none.

Contact us today to learn more.
