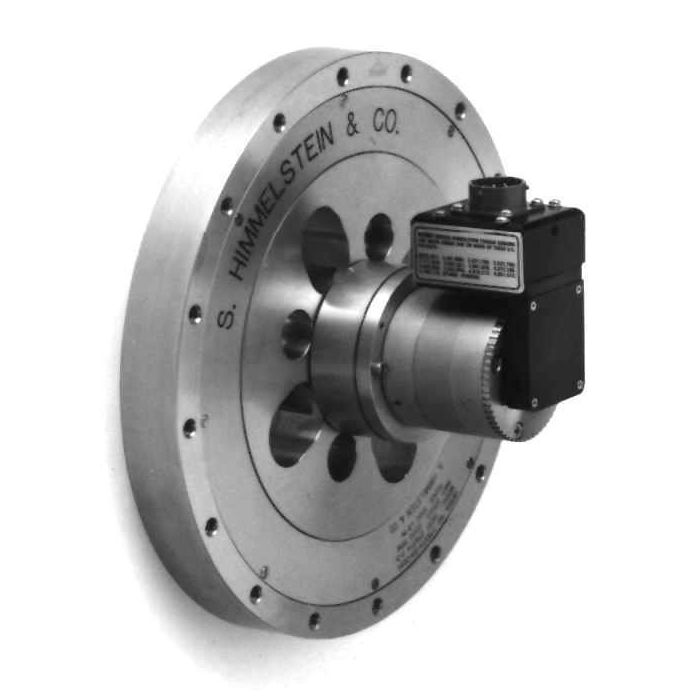

Non-Contact, Reduced Frontal Area Wheel Torquemeters, 2X-27830V

Model #: MCRT® 27830V
Description:

Non-Contact Wheel Torquemeters (Torque Wheels), 200% Overload, Available in 4 or 5 Bolt Patterns

Starting From: Contact Us For Pricing
Specification Sheet - mV/V Output
Specification Sheet - Voltage Output
Request Quote

Features

  • Waterproof, Corrosion Resistant Construction
  • Extraordinary Immunity to Extraneous Loads and Temperature Gradients
  • Measure Road Load, Braking Effort and Wheel Speed
  • Installs Simply Without Vehicle Rework
  • No Slip Rings, Ferrite’s, or Semiconductor Gages
  • NIST Traceable Dead Weight Calibration

Ranges

Model #
MCRT® 27830V(5-3)
Nm
565
Lbf-in
5000
Model #
MCRT® 27830V(1-4)
Nm
1130
Lbf-in
10000
Model #
MCRT® 27830V(2-4)
Nm
2260
Lbf-in
20000
Model #
MCRT® 27830V(5-4)
Nm
5650
Lbf-in
50000
Code N
Combined Error (% of Range)
≤0.15
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.003
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.003

Specs

Mechanical Overload:
200%
Analog Output:
CW = +5V, CCW = -5V
Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Nominal Overange (% of Range):
33%
Usable Range ˚F/˚C:
-25 to +185/-32 to +85
Bandwidth (Bessel Response Filters):
dc to 1 and dc to 500 Hz
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Power Supply:

10.5 to 24 Volts dc

Available Options

  • Standard Speed Pickup (Code A)
  • Zero Speed Pickup (Code Z)
  • Optical Encoder (Code O)

Accessories

  • Model 701 Instrument - Torque Display Only
  • Model 711 - Torque Display Only, 2 Channel
  • Model 721 - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque Only to 701 or 711
224-3642V-20
Zero Speed to 721
224-5327V-XX
Standard Speed to 721
224-3683V-XX
