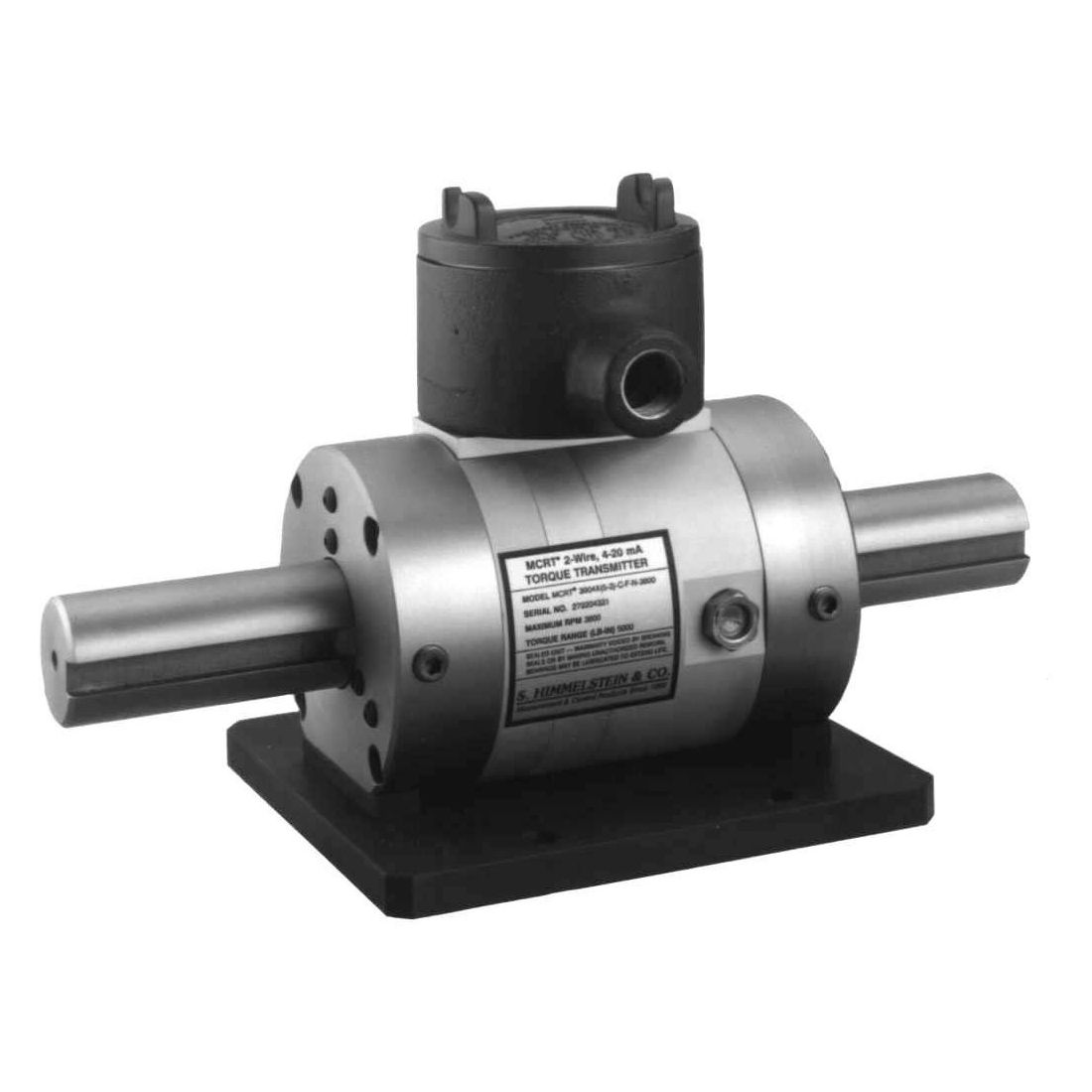

2-Wire, 4-20 mA Loop Powered Torque Transmitters-39000X

Model #: MCRT® 39000X
Description:

Shaft style, two wire torque transmitter

Starting From: $6,470

Features

  • High Safety Margins  — Handle 4X Overloads
  • Ten Times the Noise Immunity
  • NIST Traceable, NVLAP* Accredited Dead Weight Calibration
  • Ferrite-free, Non-contact Signal Transformers
  • Switchable to 12 ±8 mA Mode
  • 10 to 28 Volt Power Input, Reverse Polarity Protected
  • Splashproof & Corrosion Resistant



Ranges

Model #
MCRT® 39001X(25-0)
Nm
2.82
Lbf-in
25
Model #
MCRT® 39001X(5-1)
Nm
5.65
Lbf-in
50
Model #
MCRT® 39001X(1-2)
Nm
11.3
Lbf-in
100
Model #
MCRT® 39002X(25-1)
Nm
28.2
Lbf-in
250
Model #
MCRT® 39002X(5-2)
Nm
56.5
Lbf-in
500
Model #
MCRT® 39003X(1-3)
Nm
113
Lbf-in
1000
Model #
MCRT® 39004X(25-2)
Nm
283
Lbf-in
2500
Model #
MCRT® 39004X(5-3)
Nm
565
Lbf-in
5000
Model #
MCRT® 39006X(1-4)
Nm
1130
Lbf-in
10000
Model #
MCRT® 39006X(2-4)
Nm
2260
Lbf-in
20000
Model #
MCRT® 39007X(25-3)
Nm
2820
Lbf-in
25000
Model #
MCRT® 39007X(5-4)
Nm
5650
Lbf-in
50000
Model #
MCRT® 39008X(1-5)
Nm
11300
Lbf-in
100000
Model #
MCRT® 39008X(25-4)
Nm
28200
Lbf-in
250000
Code N
Combined Error (% of Range)
≤±0.15
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.003/≤±0.0054
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.003/≤±0.0054
Code C
Combined Error (% of Range)
≤±0.07
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
400%
Analog Output:
CW = 4-20mA, CCW = 4-20mA, CW Bidirectional = 12±8 mA, CCW Bidirectional = 12±8 mA
Compensated Range ˚F/˚C:
+75 to +175/+24 to +79.4
Nominal Overange (% of Range):
125%
Usable Range ˚F/˚C:
-25 to +185/-32 to +85
Bandwidth (Bessel Response Filters):
dc to 200 Hz or, dc to 1 Hz, switch selected
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Power Supply:

10 to 28 Vdc, fused and reverse polarity protected

Available Options

  • Enhanced Performance (code C )
  • Foot mount (code F)
  • Magnetic Speed Pickup (code Z)
  • Explosion-Proof Speed Pickup (Code P)

Accessories

  • Model 706 Instrument - Torque Display Only
  • Model 726 Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 706 or 726
224-6977V-XX
Speed to 726
224-5327V-XX
