High Overload Ultra-Precise Digital Torquemeters-59800V

Model #: MCRT® 59800V
Description:

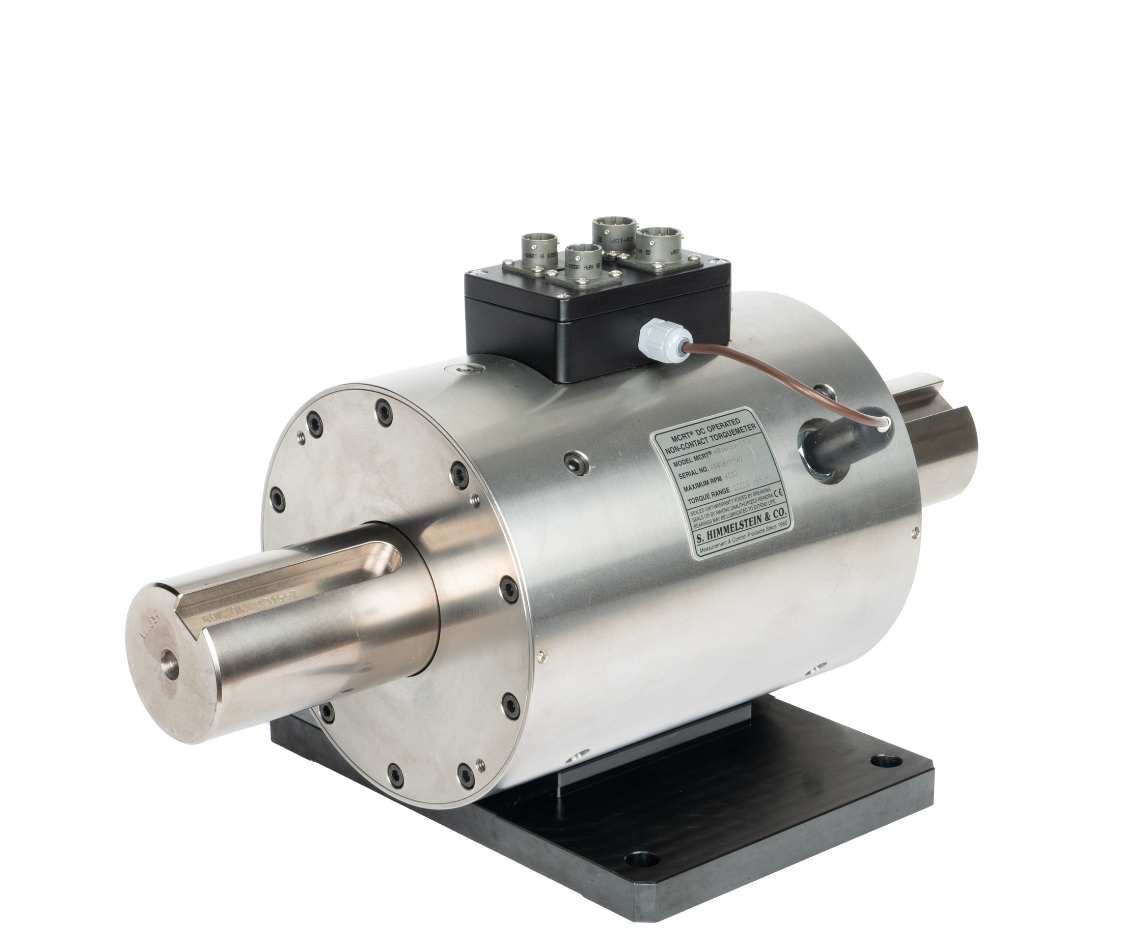

Keyed Shaft In-line Rotating Torque Transducer

Starting From: $7,800.00

Features

  • Digital and Analog Outputs of Torque, Speed and Power
  • 1 kHz Bandwidth
  • 1,000% Overload
  • 0.03% Combined Nonlinearity and Hysteresis
  • 0.03% 48 Hour Drift
  • Hardened to EMI from Adjustable Speed Drives
  • Bi-Polar Rotor Shunt Cal - NIST Traceable
  • ISO 17025 Accredited, NIST Traceable Bidirectional Calibration







Ranges

Model #
MCRT® 59801V(4-1)
Nm
4.5
Lbf-in
40
Model #
MCRT® 59802V(1-2)
Nm
11.3
Lbf-in
100
Model #
MCRT® 59802V(2-2)
Nm
22.6
Lbf-in
200
Model #
MCRT® 59803V(4-2)
Nm
45.2
Lbf-in
400
Model #
MCRT® 59804V(1-3)
Nm
113
Lbf-in
1000
Model #
MCRT® 59804V(2-3)
Nm
226
Lbf-in
2000
Model #
MCRT® 59806V(4-3)
Nm
452
Lbf-in
4000
Model #
MCRT® 59806V(8-3)
Nm
904
Lbf-in
8000
Model #
MCRT® 59807V(1-4)
Nm
1130
Lbf-in
10000
Model #
MCRT® 59807V(2-4)
Nm
2260
Lbf-in
20000
Model #
MCRT® 59808V(4-4)
Nm
4520
Lbf-in
40000
Model #
MCRT® 59808V(75-3)
Nm
8480
Lbf-in
75000
Code N
Combined Error (% of Range)
≤±0.03
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.003/≤±0.0054
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.003/≤±0.0054

Specs

Analog Output:
CW = +10V, CCW = -10V or CW = +5V, CCW = -5V, user changeable
Digital Output:

Torque, Speed and Power in Engineering Units over RS232/422/485

Compensated Range ˚F/˚C:
+75 to +175/+24 to +79.4
Nominal Overange (% of Range):
150%
Usable Range ˚F/˚C:
-25 to +185/-31 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1,000 Hz in thirteen 1-2-5 steps
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
System Resolution (% of full scale):
0.003
Power Supply:

10 to 26 Vdc @ 2.7 Watts, nominal

Available Options

  • Foot Mount (Code F)
  • Speed and power output (Code Z)

Accessories

  • Model 703+ Instrument - Torque Display Only
  • Model 733+ Instrument - Torque and Speed Display
  • Model 12D1 12 Vdc Power Supply
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 703+ or 733+
224-8722-XX
Torque & Speed to 733+
224-8800-XX
Analog Outputs to Tinned Leads
224-8917-XX
Logic I/O to Tinned Leads
224-8918-XX
RS232
224-8359-XX
RS422/485
224-8360-XX
RS485 Torquemeter to Torquemeter
224-8361-XX
