Non-Contact, DC Operated Compact Digital Torquemeters-48200V

Model #: MCRT® 48200V
Description:

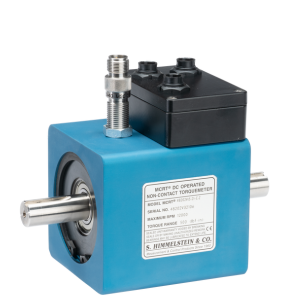

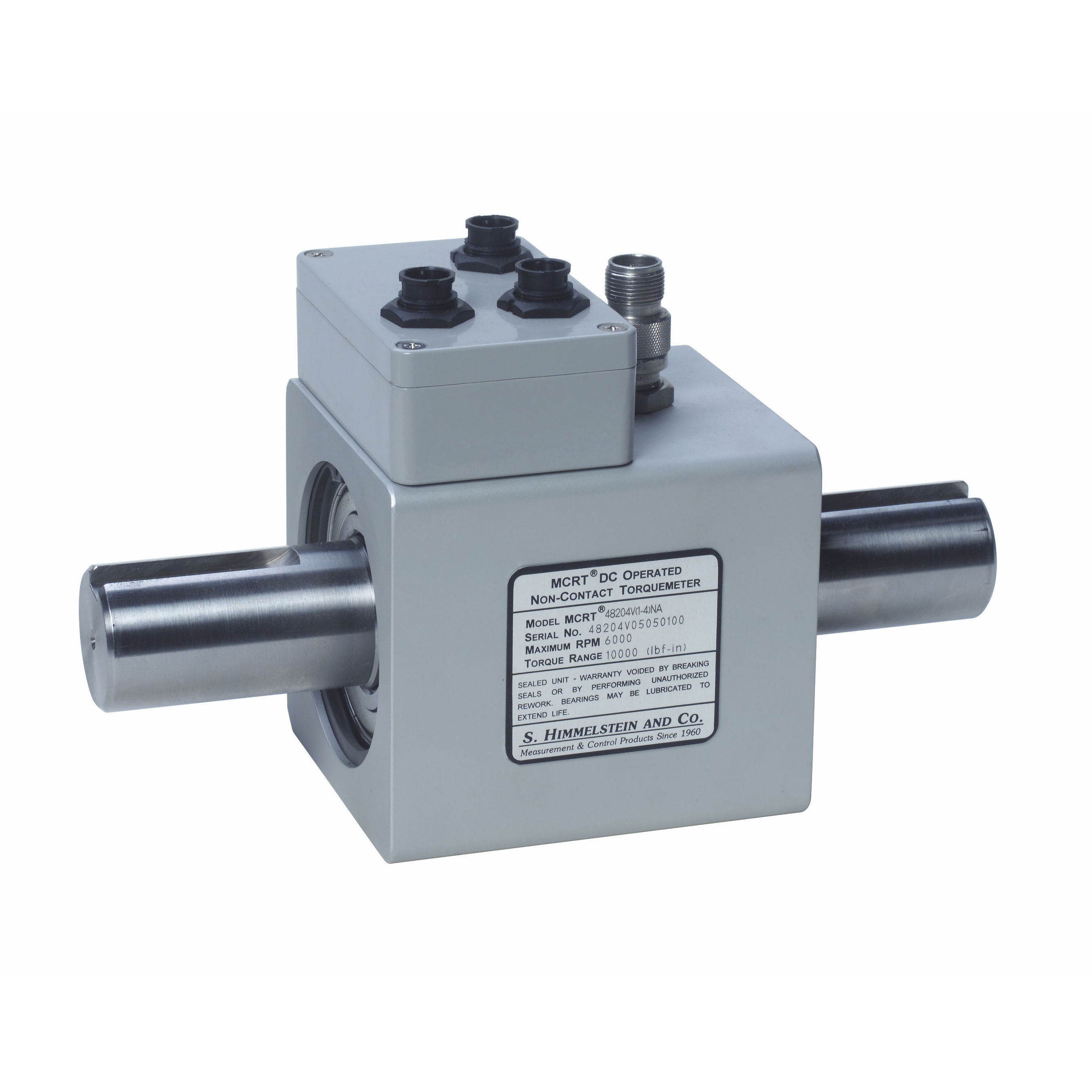

Keyed Shaft In-line Rotating Torque Transducer

Starting From: $3,385.00
Data Sheet
Quick Start Installation Guide
Product Manual
Request Quote

Features

  • ±10 or ±5 Vdc Analog Output with 0.02% Resolution
  • 14 bit Engineering Unit Output via Com Port
  • Includes PC Interface Software and Cable
  • No Pots, Switches or Manual Adjustments
  • Strain Gage Sensing in Robust Compact Assembly
  • High Strength Alloy Steel Shaft
  • 200% Overload Capacity
  • ISO 17025 Accredited, NIST Traceable Bidirectional Calibration

Ranges

Model #
MCRT® 48201V(25-0)
Nm
2.80
Lbf-in
25
Model #
MCRT® 48201V(5-1)
Nm
5.65
Lbf-in
50
Model #
MCRT® 48201V(1-2)
Nm
11.3
Lbf-in
100
Model #
MCRT® 48201V(2-2)
Nm
22.6
Lbf-in
200
Model #
MCRT® 48202V(5-2)
Nm
56.5
Lbf-in
500
Model #
MCRT® 48202V(1-3)
Nm
113
Lbf-in
1,000
Model #
MCRT® 48203V(2-3)
Nm
226
Lbf-in
2,000
Model #
MCRT® 48204V(5-3)
Nm
565
Lbf-in
5,000
Model #
MCRT® 48204V(1-4)
Nm
1,130
Lbf-in
10,000
Code N
Combined Error (% of Range)
≤±0.2
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.004/≤±0.007
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.004/≤±0.007
Code C
Combined Error (% of Range)
≤±0.15
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.0017/≤±0.003
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.0017/≤±0.003

Specs

Mechanical Overload:
200%
Analog Output:
±10 or ±5 Vdc, user selectable
Digital Output:

Torque in Engineering Units over RS232C

Compensated Range ˚F/˚C:
+75 to +150/+23.9 to +66
Nominal Overange (% of Range):
130%
Usable Range ˚F/˚C:
+32 to +175/0 to +79.4
Bandwidth (Bessel Response Filters):
DC to 0.1 Hz to 200 Hz in eleven 1-2-5 steps
System Resolution (% of full scale):
0.02% on ±10 Vdc output
Power Supply:

10 to 15 Vdc @ 200 mA, nominal

Available Options

  • Enhanced Performance (Code C)
  • Standard Speed Pickup (Code A)
  • Zero Velocity Speed Pickup (Code Z)

Accessories

  • Model 703+ Instrument - Torque Display Only
  • Model 723+ Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Power Supply
224-8271-XX
Torque to 703+ or 723+
224-8270-XX
Standard Speed to 723+
224-3683V-XX
Zero Speed to 723+
224-5327V-XX
