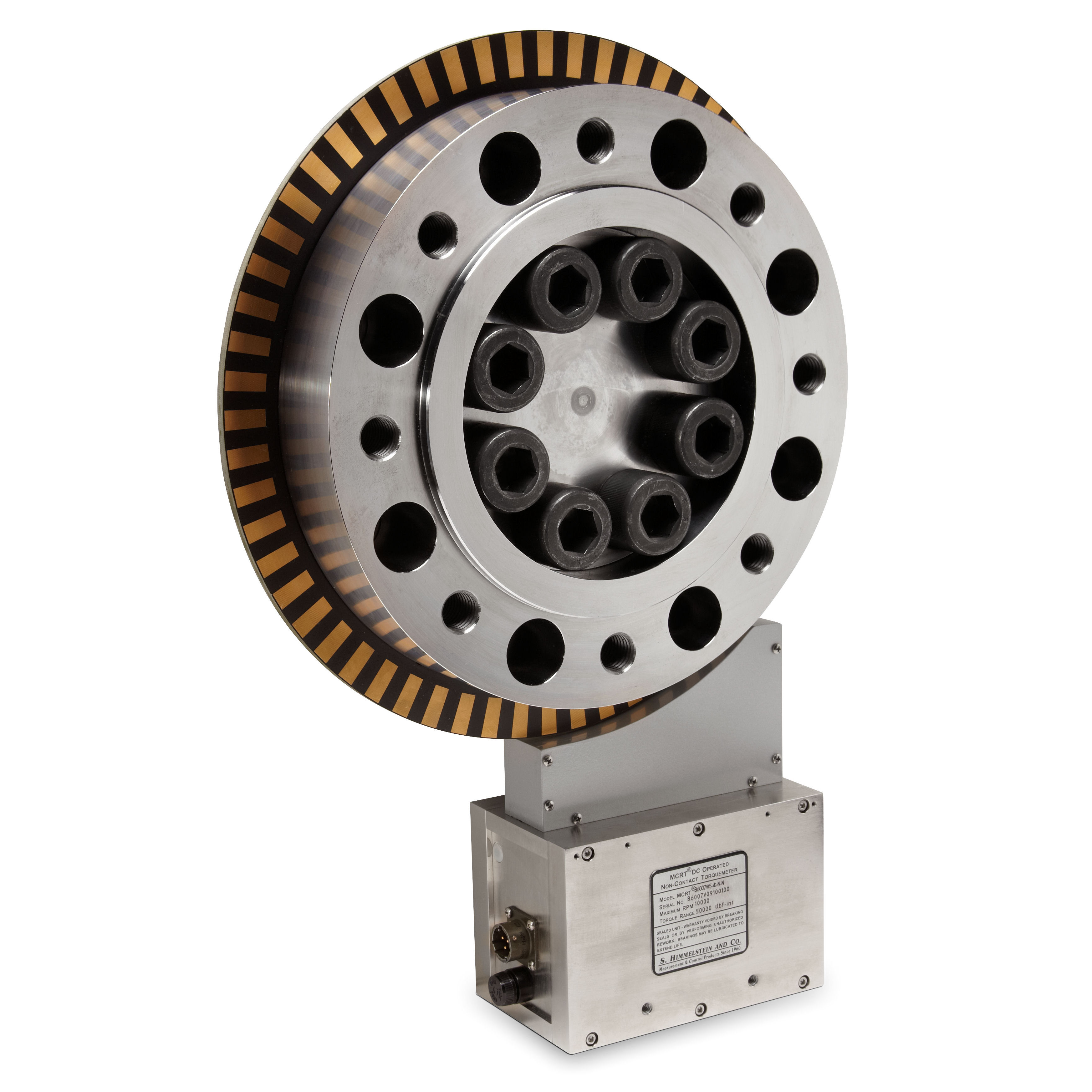

Dual Range Bearingless Digital Torquemeters-84700V

Model #: MCRT® 84700V
Description:

Flanged Wireless In-line Rotating Dual Range Torque Transducer

Starting From: $13,665.00

Features

  • Best Real World Accuracy of Any Similar Torquemeter, Torque Sensor or Torque Transducer
  • Wide Installed Measurement Bandwidth
  • Simple Installation, Tolerant of Rotor-Stator Misalignment
  • Low Sensitivity to Clamping Loads
  • Noise Tolerant Carrier Amplification
  • Bi-Directional Rotor Shunt Calibration
  • No Hoop or Caliper Antennae
  • ISO 17025 Accredited, NIST Traceable Bidirectional Calibration







Ranges

Model #
Nm
Lbf-in

Dual Ranges

Model #
MCRT® 84702V(5-2)
Low Range Nm
11.3
High Range Nm
56.5
Low Range Lbf-in
100
High Range Lbf-in
500
Model #
MCRT® 84702V(1-3)
Low Range Nm
22.6
High Range Nm
113
Low Range Lbf-in
200
High Range Lbf-in
1,000
Model #
MCRT® 84702V(2-3)
Low Range Nm
45.2
High Range Nm
226
Low Range Lbf-in
400
High Range Lbf-in
2000
Model #
MCRT® 84704V(5-3)
Low Range Nm
113
High Range Nm
565
Low Range Lbf-in
1,000
High Range Lbf-in
5,000
Model #
MCRT® 84704V(1-4)
Low Range Nm
226
High Range Nm
1,130
Low Range Lbf-in
2,000
High Range Lbf-in
10,000
Model #
MCRT® 84704V(2-4)
Low Range Nm
452
High Range Nm
2,260
Low Range Lbf-in
4,000
High Range Lbf-in
20,000
Model #
MCRT® 84707V(5-4)
Low Range Nm
1,130
High Range Nm
5,650
Low Range Lbf-in
10,000
High Range Lbf-in
50,000
Model #
MCRT® 84707V(1-5)
Low Range Nm
2,260
High Range Nm
11,300
Low Range Lbf-in
20,000
High Range Lbf-in
100,000
Code N
Combined Error (% of Range)
≤±0.03% of High Range
Combined Error (% of Low Range)
≤±0.05% of Low Range
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.0003/≤±0.00054
Temperature Effect Zero (% of Low Range/˚F/˚C)
≤±0.0015/≤±0.0027
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
200% of High Rating/1,000% of Low Rating
Analog Output:
±10 V with ±15V overrange
Digital Output:

Torque and Temperature with units of measure over RS232C/RS422/RS485/USB

Compensated Range ˚F/˚C:
+75 to +175/+24 to +79.4
Nominal Overange (% of Range):
150%
Usable Range ˚F/˚C:
-25 to +185/-32 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1 kHz in thirteen 1-2-5 steps, plus 3 kHz
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Rotor to Stator Maximum Misalignment (inches/mm):
Axial: ±0.4/±10.2, Radial: 0.3/±7.6
Frequency Modulated Output:
10±5/10±20/40±20 kHz; field changeable; TTL square wave
Power Supply:

10 to 26 Vdc @ 6 to 11 Watts nominal

Available Options

  • Zero Speed Pickup (Code Z)
  • Optical Speed Pickup (Code O)
  • Enhanced Speed Rating (Code H)

Accessories

  • Model 703 Instrument - Torque Display Only
  • Model 723 Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Power Supply with Tinned Leads
224-8362-XX
Torque to 700 Series
224-8430-XX
Speed to 700 Series
224-5327V-XX
Analog Output to Tinned Leads
224-8358-XX
I/O & FM output to Tinned Leads
224-8369-XX
Speed to Tinned Leads
224-5347-XX
RS232
224-8359-XX
RS422/RS485
224-8360-XX
