Dual Range Bearingless Digital Torquemeters-81708

Model #: MCRT® 81708V
Description:

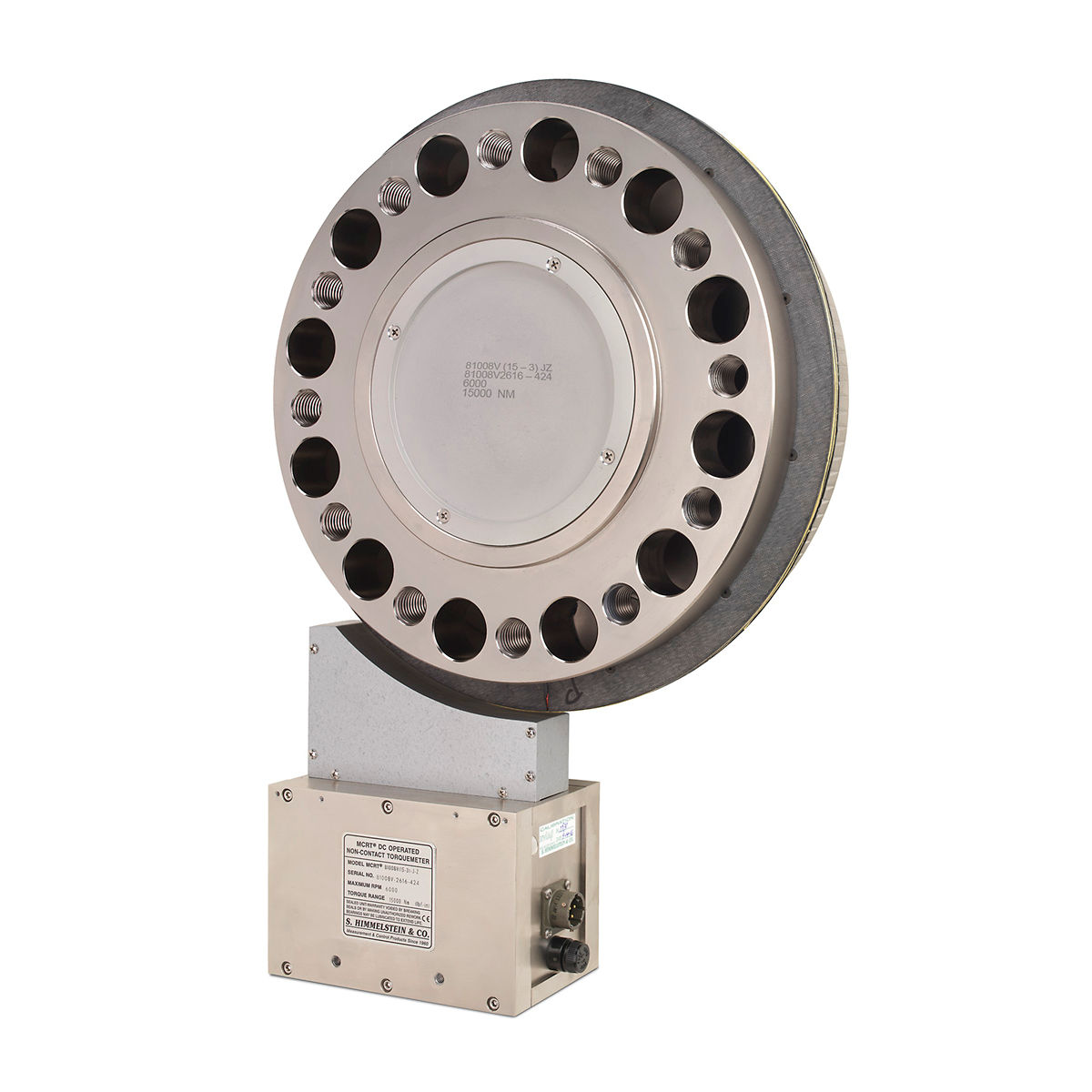

Flanged Wireless In-line Rotating Torque Transducer

Starting From: $18,150.00

Features

  • Best Real World Accuracy of Any Similar Torquemeter, Torque Sensor or Torque Transducer
  • Simple Installation, Tolerant of Rotor-Stator Misalignment
  • Metric Pilots and Fasteners
  • Noise Tolerant Carrier Amplification
  • Bi-Directional Rotor Shunt Calibration
  • No Hoop or Caliper Antennae
  • ISO 17025 Accredited, NIST Traceable Bidirectional Calibration

Ranges

Model #
Nm
Lbf-in

Dual Ranges

Model #
MCRT® 81708V(1-4 Nm)
Low Range Nm
2,000
High Range Nm
10,000
Low Range Lbf-in
17,700
High Range Lbf-in
88,510
Model #
MCRT® 81708V(15-3 Nm)
Low Range Nm
3,000
High Range Nm
15,000
Low Range Lbf-in
26,550
High Range Lbf-in
132,760
Model #
MCRT® 81708V(2-4 Nm)
Low Range Nm
4,000
High Range Nm
20,000
Low Range Lbf-in
35,400
High Range Lbf-in
177,000
Model #
MCRT® 81708V(25-3 Nm)
Low Range Nm
5,000
High Range Nm
25,000
Low Range Lbf-in
44,260
High Range Lbf-in
221,300
Code N
Combined Error (% of Range)
≤±0.1% of High Range
Combined Error (% of Low Range)
≤±0.1% of Low Range
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.0004/≤±0.00072
Temperature Effect Zero (% of Low Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Code C
Combined Error (% of Range)
≤±0.05% of High Range
Combined Error (% of Low Range)
≤±0.07 of Low Range
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.0004/≤±0.00072
Temperature Effect Zero (% of Low Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
200% of High Rating/1,000% of Low Rating
Analog Output:
±10 V with ±15V overrange
Digital Output:

Torque and Temperature with units of measure over RS232C/RS422/RS485/USB

Compensated Range ˚F/˚C:
+75 to +175/+24 to +79.4
Nominal Overange (% of Range):
150% for High Range, 300% on Low Range
Usable Range ˚F/˚C:
-25 to +185/-32 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1 kHz in thirteen 1-2-5 steps, plus 3 kHz
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Rotor to Stator Maximum Misalignment (inches/mm):
Axial: ±0.2/±5, Radial: 0.2/±5
Frequency Modulated Output:
10±5/10±20/40±20 kHz; field changeable; TTL square wave
Power Supply:

10 to 26 Vdc @ 6 to 11 Watts nominal

Available Options

  • Enhanced Performance (code C)
  • Magnetic Speed Pickup (code Z)

Accessories

  • Model 703+ Instrument - Torque Display Only
  • Model 723+ Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Power Supply with Tinned Leads
224-8362-XX
Torque to 700 Series
224-8430-XX
Speed to 700 Series
224-5327V-XX
Analog Output to Tinned Leads
224-8358-XX
I/O & FM output to Tinned Leads
224-8369-XX
Speed to Tinned Leads
224-5347-XX
RS232
224-8359-XX
RS422/RS485
224-8360-XX
