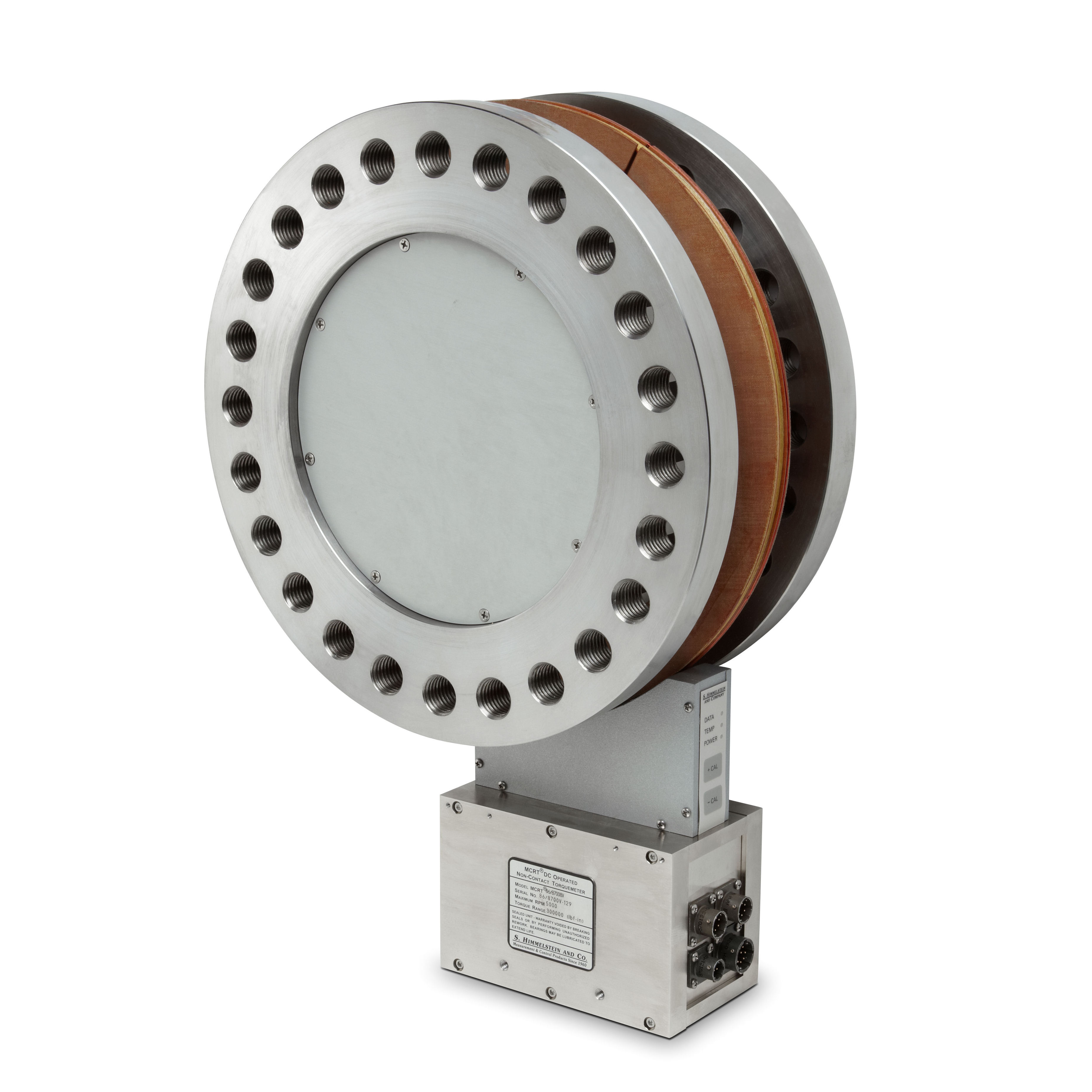

Bearingless Digital Torquemeters-87000V

Model #: MCRT® 87000V
Description:

High Capacity Flanged In-line Rotating Torque Transducer

Starting From: $18,600.00

Features

  • Best Real World Accuracy of Any Similar Torquemeter, Torque Sensor or Torque Transducer
  • High Overange and Overload
  • World Class Temperature Performance
  • Immunity to External Noise
  • High Stiffness and Low Deflection
  • Bi-Directional Rotor Shunt Calibration
  • Simple, Non-critical Installation
  • ISO 17025 Accredited, NIST Traceable Bidirectional Calibration

Ranges

Model #
MCRT® 87008V(15-4)
Nm
16900
Lbf-in
150000
Model #
MCRT® 87008V(25-4)
Nm
28200
Lbf-in
250000
Model #
MCRT® 87008V(375-3)
Nm
42400
Lbf-in
3750000
Model #
MCRT® 86009V(5-5)
Nm
56500
Lbf-in
500000
Model #
MCRT® 87009V(875-3)
Nm
98800
Lbf-in
875000
Model #
MCRT® 87009V(125-4)
Nm
141000
Lbf-in
1250000
Model #
MCRT® 87010V(1625-3)
Nm
183000
Lbf-in
1625000
Model #
MCRT® 87010V(2-6)
Nm
226000
Lbf-in
2000000
Code N
Combined Error (% of Range)
≤±0.1
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001/≤±0.0018
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Code C
Combined Error (% of Range)
≤±0.05
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.0006/≤±0.001
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
400%
Analog Output:
±5V with ±15V overrange
Digital Output:

Torque and Temperature with units of measure over RS232C/RS422/RS485/USB

Compensated Range ˚F/˚C:
+75 to +175/+24 to +79.4
Nominal Overange (% of Range):
300%
Usable Range ˚F/˚C:
-25 to +185/-31 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1 kHz in thirteen 1-2-5 steps, plus 3 kHz
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Rotor to Stator Maximum Misalignment (inches/mm):
MCRT 87008V - Axial: ±0.4/±10.2, Radial: 0.3/±7.6
MCRT 87009V/86010V - Axial: ±0.2/±5.1, Radial: 0.2/5.1
Frequency Modulated Output:
10±5/10±20/40±20 kHz; field changeable; TTL square wave
Power Supply:

10 to 26 Vdc @ 6 to 11 Watts nominal

Available Options

  • Enhanced Performance (Code C)
  • Magnetic Speed Pickup (code Z)
  • Optical Speed Pickup (code O)

Accessories

  • Model 703 Instrument - Torque Display Only
  • Model 723 Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Power Supply with Tinned Leads
224-8362-XX
Torque to 703 or 723
224-8430-XX
Speed to 723
224-5327V-XX
Analog Output to Tinned Leads
224-8358-XX
I/O & FM output to Tinned Leads
224-8369-XX
Speed to Tinned Leads
224-5347-XX
RS232
224-8359-XX
RS422/RS485
224-8360-XX
