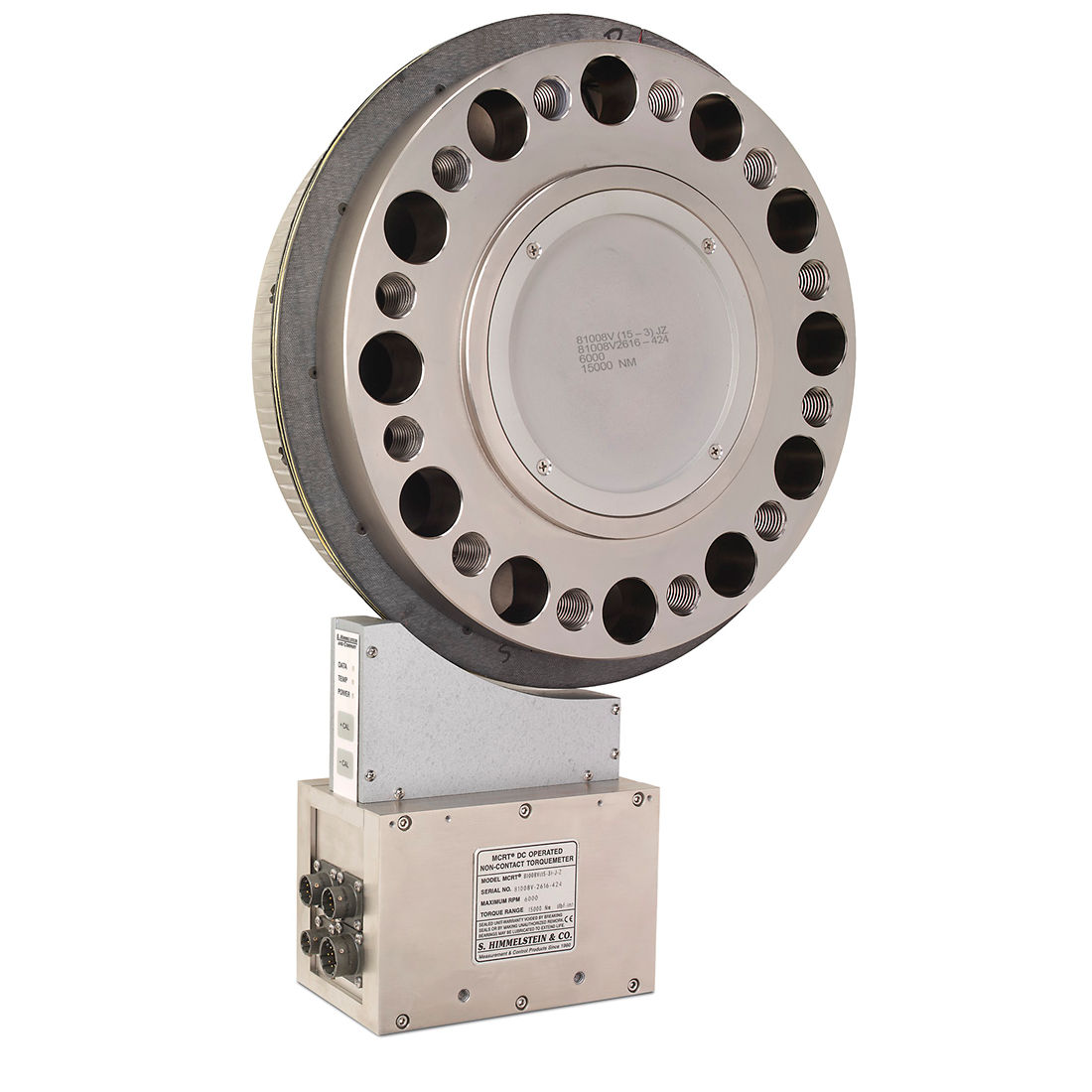

Bearingless Digital Torquemeters-81008V

Model #: MCRT® 81008V
Description:

Flanged Wireless In-line Rotating Torque Transducer

Starting From: $13,705.00
Data Sheet
Quick Start Installation Guide
Product Manual
Request Quote

Features

  • Best Real World Accuracy of Any Similar Torquemeter, Torque Sensor or Torque Transducer
  • Wide Installed Measurement Bandwidth
  • Simple Installation, Tolerant of Rotor-Stator Misalignment
  • Metric Pilots and Fasteners
  • Noise Tolerant Carrier Amplification
  • Bi-Directional Rotor Shunt Calibration
  • No Hoop or Caliper Antennae
  • ISO 17025 Accredited, NIST Traceable Bidirectional Calibration

Ranges

Model #
MCRT® 81008V
Nm
10000
Lbf-in
88510
Model #
MCRT® 81008V
Nm
15000
Lbf-in
132760
Model #
MCRT® 81008V
Nm
20000
Lbf-in
177000
Model #
MCRT® 81008V
Nm
25000
Lbf-in
221300
N
Combined Error (% of Range)
±0.1
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001/≤±0.0018
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
C
Combined Error (% of Range)
±0.05
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001/≤±0.0018
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
200%
Analog Output:
±10 V with ±15V overrange
Digital Output:

Torque and Temperature with units of measure over RS232C/RS422/RS485/USB

Compensated Range ˚F/˚C:
75 to +175/+24 to +79.4
Nominal Overange (% of Range):
150%
Usable Range ˚F/˚C:
-25 to +185/-31 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1 kHz in thirteen 1-2-5 steps, plus 3 kHz
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Rotor to Stator Maximum Misalignment (inches/mm):
Axial: ±0.2/±5, Radial: 0.2/±5
Frequency Modulated Output:
10±5/10±20/40±20 kHz; field changeable; TTL square wave
Power Supply:

10 to 26 Vdc @ 6 to 11 Watts nominal

Available Options

  • Enhanced Performance (code C)
  • Magnetic Speed Pickup (code Z)

Accessories

  • Model 703+ Instrument - Torque Display Only
  • Model 723+ Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 703+ or 723+
224-8430-XX
Speed to 723+
224-5327V-XX
Power Supply with Tinned Leads
224-8362-XX
RS232
224-8359-XX
RS422/485
224-8360-XX
