Compact, High Capacity, Square Drive Reaction Torque Transducers-2208M & 2209M

Model #: RTM 2208M & RTM 2209M
Description:

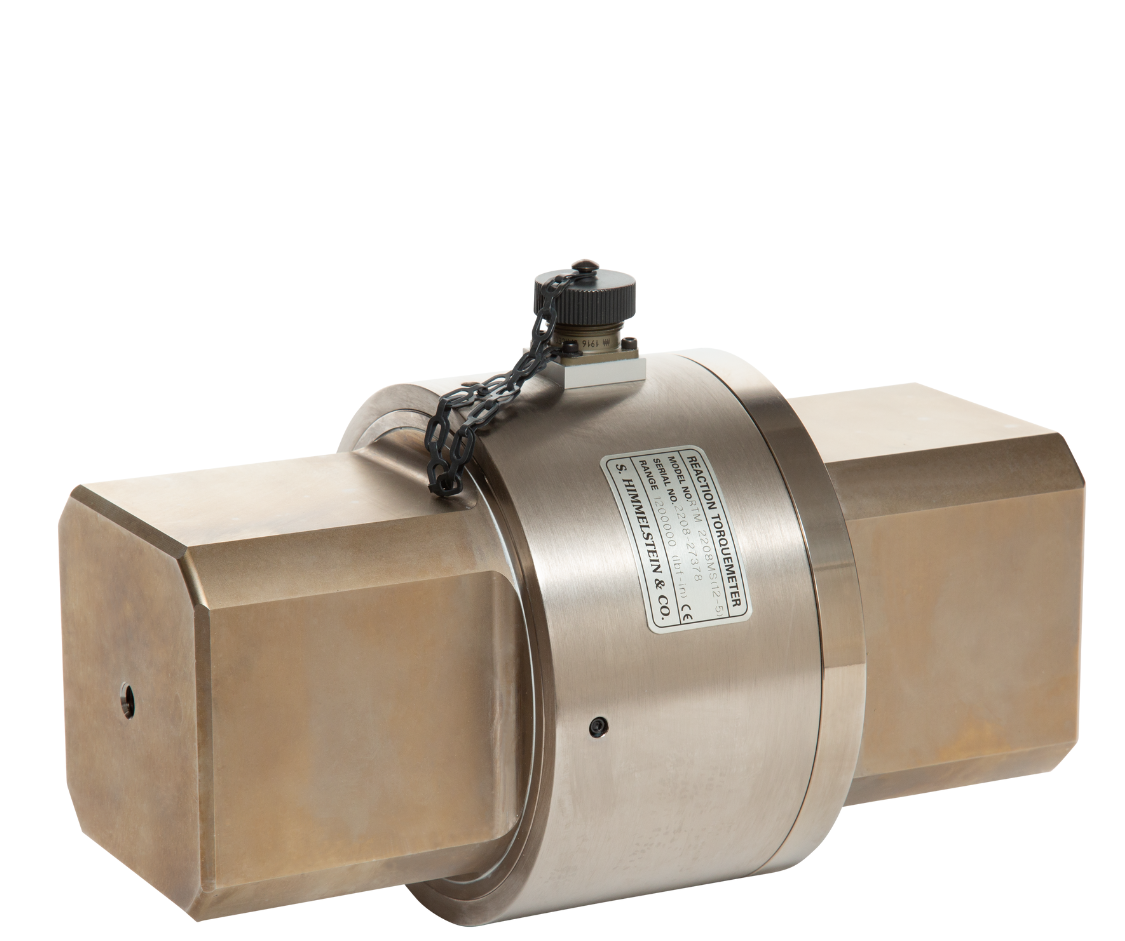

Compact, High Capacity, Square Drive Reaction Torque Transducers

Starting From: $12,075.00
Data Sheet
Request Quote

Features

  • Simple Installation
  • Compact
  • High Stiffness / High Overload
  • NIST Traceable Bidirectional Calibrated

Ranges

Model #
RTM 2208M(3-5)
Nm
33900
Lbf-in
300000
Model #
RTM 2208M(6-5)
Nm
67800
Lbf-in
600000
Model #
RTM 2208M(12-5)
Nm
135600
Lbf-in
1200000
Model #
RTM 2209M(18-5)
Nm
203000
Lbf-in
1800000
Model #
RTM 2209M(24-5)
Nm
271000
Lbf-in
2400000
Model #
RTM 2209M(3-6)
Nm
339000
Lbf-in
3000000
Code N
Combined Error (% of Range)
0.25 except 0.5 for Model 2208M(12-5)
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
200%
Analog Output:
3 mV/V
Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Usable Range ˚F/˚C:
-65 to +220/-54 to +104
Power Supply:

15 Volts, ac or dc

Accessories

  • Model 708 Instrument - Torque Display Only
  • Model 788 Instrument - 2 Channel Torque Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 708 or 788
224-3642V-XX
