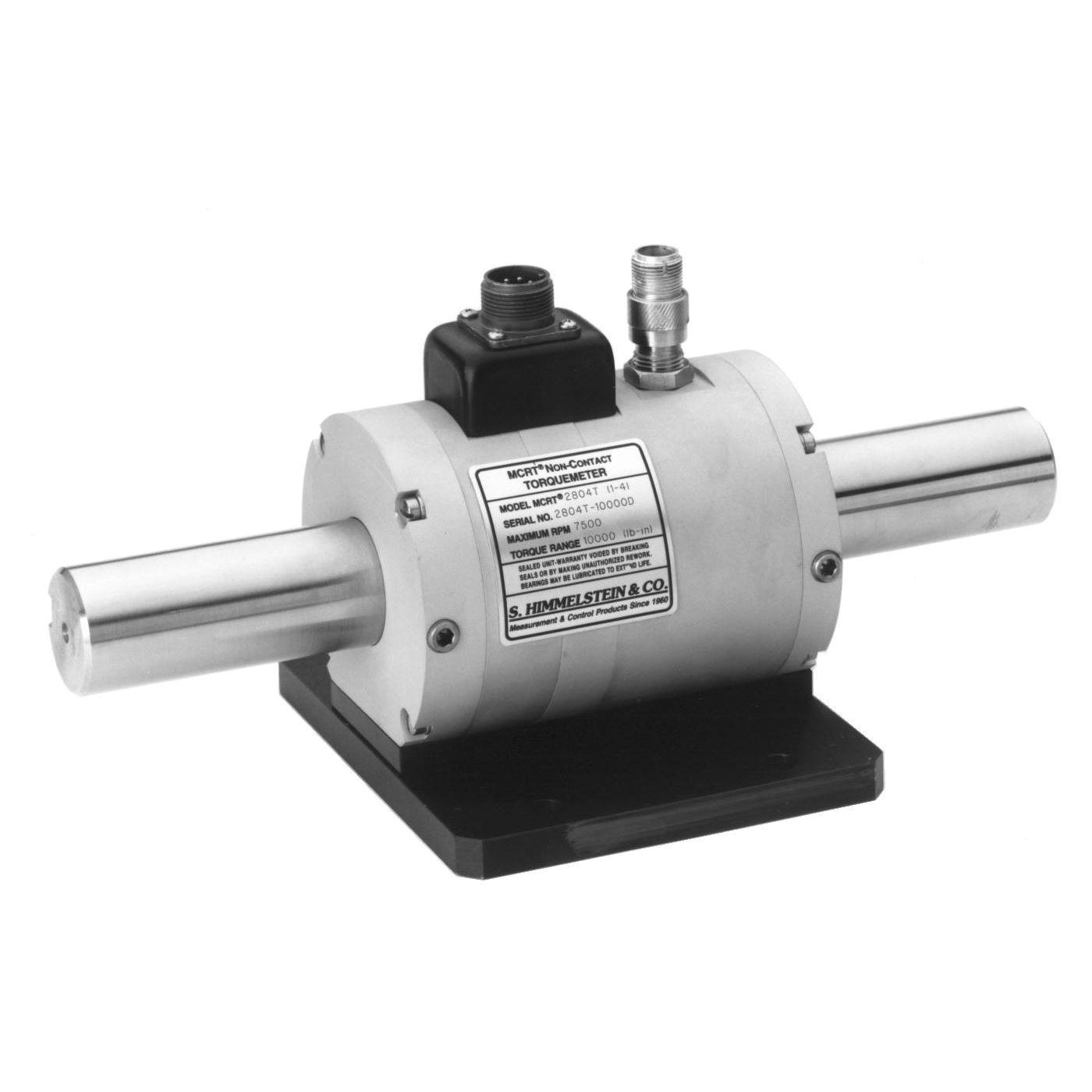

Non-Contact, Shafted, mV/V Output Strain Gage Torquemeters-28000T- Obsolete. Possibly available by special order only. See Comparison Chart.

Model #: MCRT® 28000T
Description:

mV/V Strain Gage Torque Sensors

Starting From: $6,635.00
Data Sheet
Comparison Chart
Obsolete Model Cross Reference Guide
Request Quote

Features

  • Hardened to EMI From Adjustable Speed Drives
  • mV/V Output, Compatible With Carrier Amplifiers
  • Unexcelled Immunity To Machinery Magnetic Fields
  • Splashproof, Corrosion Resistant Construction
  • Bidirectional Operation Includes Stall
  • NIST Traceable Dead Weight Calibration

Ranges

Model #
MCRT® 28001T(25-0)
Nm
2.82
Lbf-in
25
Model #
MCRT® 28001T(5-1)
Nm
5.65
Lbf-in
50
Model #
MCRT® 28001T(1-2)
Nm
11.3
Lbf-in
100
Model #
MCRT® 28001T(2-2
Nm
22.6
Lbf-in
200
Model #
MCRT® 28002T(5-2)
Nm
56.5
Lbf-in
500
Model #
MCRT® 28002T(1-3)
Nm
113
Lbf-in
1000
Model #
MCRT® 28003T(2-3)
Nm
226
Lbf-in
2000
Model #
MCRT® 28004T(5-3)
Nm
565
Lbf-in
5000
Model #
MCRT® 28004T(1-4)
Nm
1130
Lbf-in
10000
Model #
MCRT® 28006T(2-4)
Nm
2260
Lbf-in
20000
Model #
MCRT® 28006T(4-4)
Nm
4520
Lbf-in
40000
Model #
MCRT® 28007T(5-4)
Nm
5650
Lbf-in
50000
Model #
MCRT® 28007T(1-5)
Nm
11300
Lbf-in
100000
Model #
MCRT® 28008T(2-5)
Nm
22600
Lbf-in
200000
Model #
MCRT® 28008T(375-3)
Nm
42400
Lbf-in
375000
Code N
Combined Error (% of Range)
≤±0.1
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Code C
Combined Error (% of Range)
≤±0.05
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001/≤±0.0018
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.001/≤±0.0018

Specs

Mechanical Overload:
200%
Analog Output:
1.5 mV/V
Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Usable Range ˚F/˚C:
-25 to +185/-32 to +85
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Power Supply:

≤6 volts rms, 3 kHz ±10%, sine wave

Available Options

  • Enhanced Performance (Code C)
  • Foot Mount (Code F)
  • Standard Speed Pickup (Code A)
  • Zero Speed Pickup (Code Z)

Accessories

  • Model 701 Instrument - Torque Display Only
  • Model 721 Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 701 or 721
224-3642V-XX
Zero Speed to 721
224-5327V-XX
Standard Speed to 721
224-3683V-XX
