Ultra Precise Shaft Torque Transducers

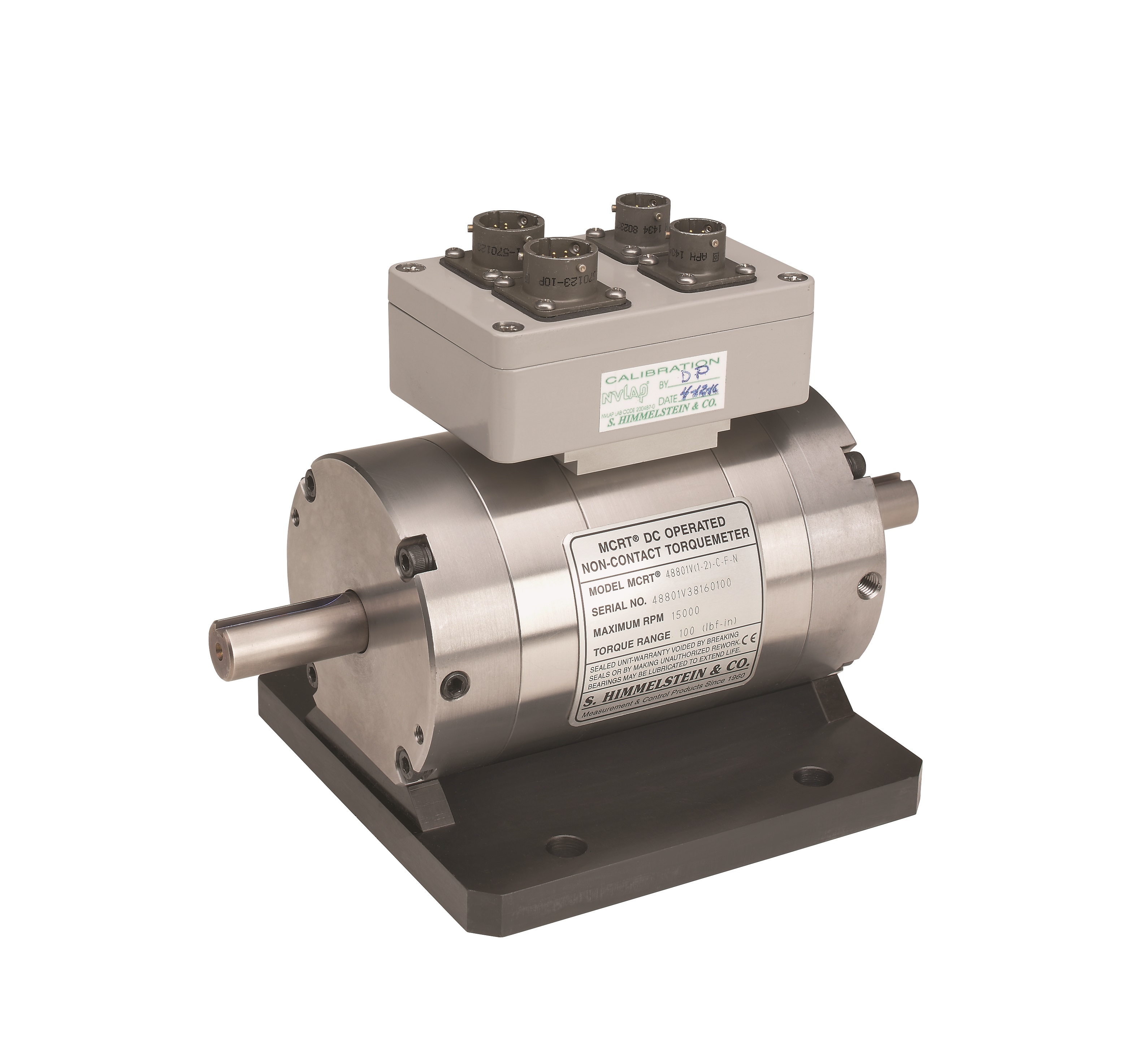

Ultra Precise Torque Sensor Image

Series MCRT® 48800V and 49800V Series Digital Torque Transducers offer extreme measurement accuracy with fast installed response, and high mechanical overloads and electrical overrange.  Output signals for torque, speed and horsepower are provided as analog (±5 or ±10 Vdc) and digital over RS232 serial port.  Available capacities are from 2.8 to 42,000 Nm.

They are available in two accuracy grades: ±0.04% and ±0.02% of full scale combined non-linearity and hysteresis, and have world class temperature performance.  Mechanical overloads of 200% or 400% offers a safety margin in the presence of high startup torques or large torsional oscillations such as produced by Diesel engines.  Electrical overrange of 150% avoids clipping of real world torque peaks and driveline torsionals reducing potential for errors in the average torque measurement.  Output bandwidth is 1 kHz with 13 user selectable low pass filters.  Included interface software allows fast PC setup and re-configuration while selecting from up to 33 units of measure, all without re-calibrating. All are calibrated CW and CCW to rated load in our ISO 17025, NVLAP accredited laboratory (NVLAP lab code 200487-0).

They are well suited for a broad range of applications including both performance and endurance testing of engines, transmissions, drive systems, pumps, motors, servo motors, gearboxes, actuators, etc.

S. Himmelstein and Company has been offering innovative torque measurement solutions since 1960, manufacturing a full line of shaft, spline, flange, pulley, wheel and reaction torquemeters, and other torque measuring instruments.  For more information, call 1-800-632-7873 or e-mail sales@himmelstein.com
