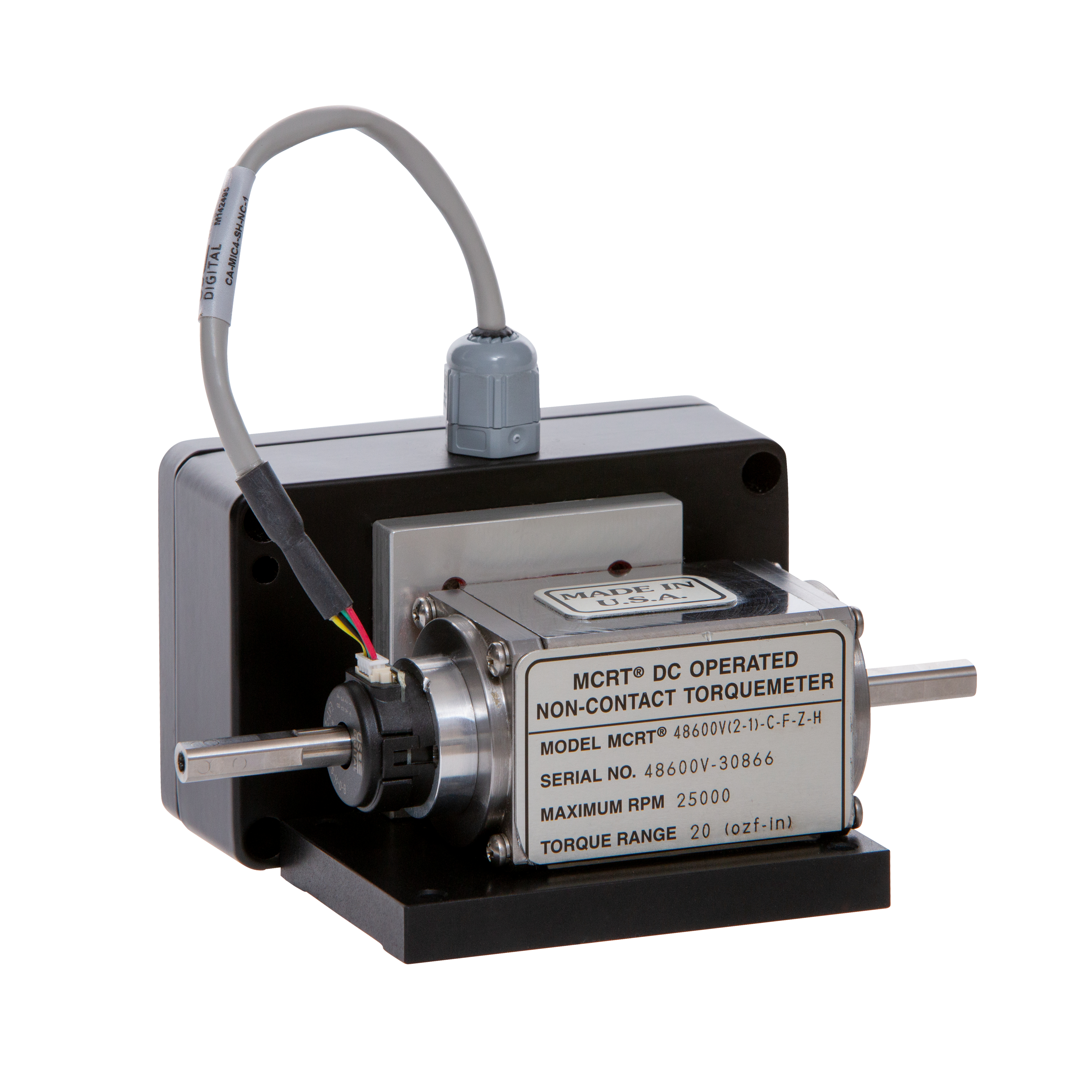

Ultra Precise Low Capacity Digital Rotating Torque Transducer - 48600V

Model #: MCRT® 48600V
Description:

Non-Contact, Ultra Precise Low Capacity Digital Torque Sensors

Starting From: $ 5,720.00
Data Sheet
Comparison Chart to Previous Models
Quick Start Installation Guide
Product Manual
Outline Drawing - pdf
Request Quote

Features

  • Capacities from 10 to 200 ozf-in (0.07 to 1.4 Nm)
  • 200 to 1,000% Overload
  • 150% Overrange
  • 25,000 rpm Speed Rating
  • Engineering Unit Digital Outputs of Torque, Speed & Power
  • ±5.000/±10 Volt Analog Outputs of Torque, Speed & Power
  • Hardened to EMI from Adjustable Speed Drives
  • 1 kHz Bandwidth
  • ISO 17025:2017 Accredited Calibration

Ranges

Model #
MCRT® 48600V(1-1)
Nm
0.07
Lbf-in
0.625
Model #
MCRT® 48600V(2-1)
Nm
0.141
Lbf-in
1.25
Model #
MCRT® 48600V(5-1)
Nm
0.353
Lbf-in
3.125
Model #
MCRT® 48600V(1-2)
Nm
0.70
Lbf-in
6.25
Model #
MCRT® 48600V(2-2)
Nm
1.41
Lbf-in
12.5
Code N
Combined Error (% of Range)
≤±0.1
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Code C
Combined Error (% of Range)
≤±0.05
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
200%/1,000%
Analog Output:
CW = +10V, CCW = -10V or CW = +5V, CCW = -5V, user changeable, full scale torque and power
Digital Output:

Torque, Speed and Power in Engineering Units over RS232/422/485

Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Nominal Overange (% of Range):
150%
Usable Range ˚F/˚C:
-25 to +185/-32 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1,000 Hz in thirteen 1-2-5 steps
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
System Resolution (% of full scale):
0.003
Power Supply:

10 to 26 Vdc @ 2.7 Watts, nominal

Available Options

  • Enhanced Performance (Code C)
  • Speed and Power Output (Code Z)
  • Enhanced Speed Rating (Code H)

Accessories

  • Model 703+ Instrument - Torque Display Only
  • Model 733+ Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 703+ or 733+
224-8722-XX
Torque & Speed to 733+
224-8800-XX
Analog Outputs to Tinned Leads
224-8917-XX
Logic I/O to Tinned Leads
224-8918-XX
RS232
224-8359-XX
RS422/485
224-8360-XX
RS485 Torquemeter to Torquemeter
224-8361-XX
