Available in capacities from 300,000 to 3,000,000 lbf-in, these square drive reaction torque transducers offer a compact mechanical package and cost effective alternative for applications requiring measurement of large torques. |
|
| |
 |
|
|
|
Choose 2X or 4X overload |

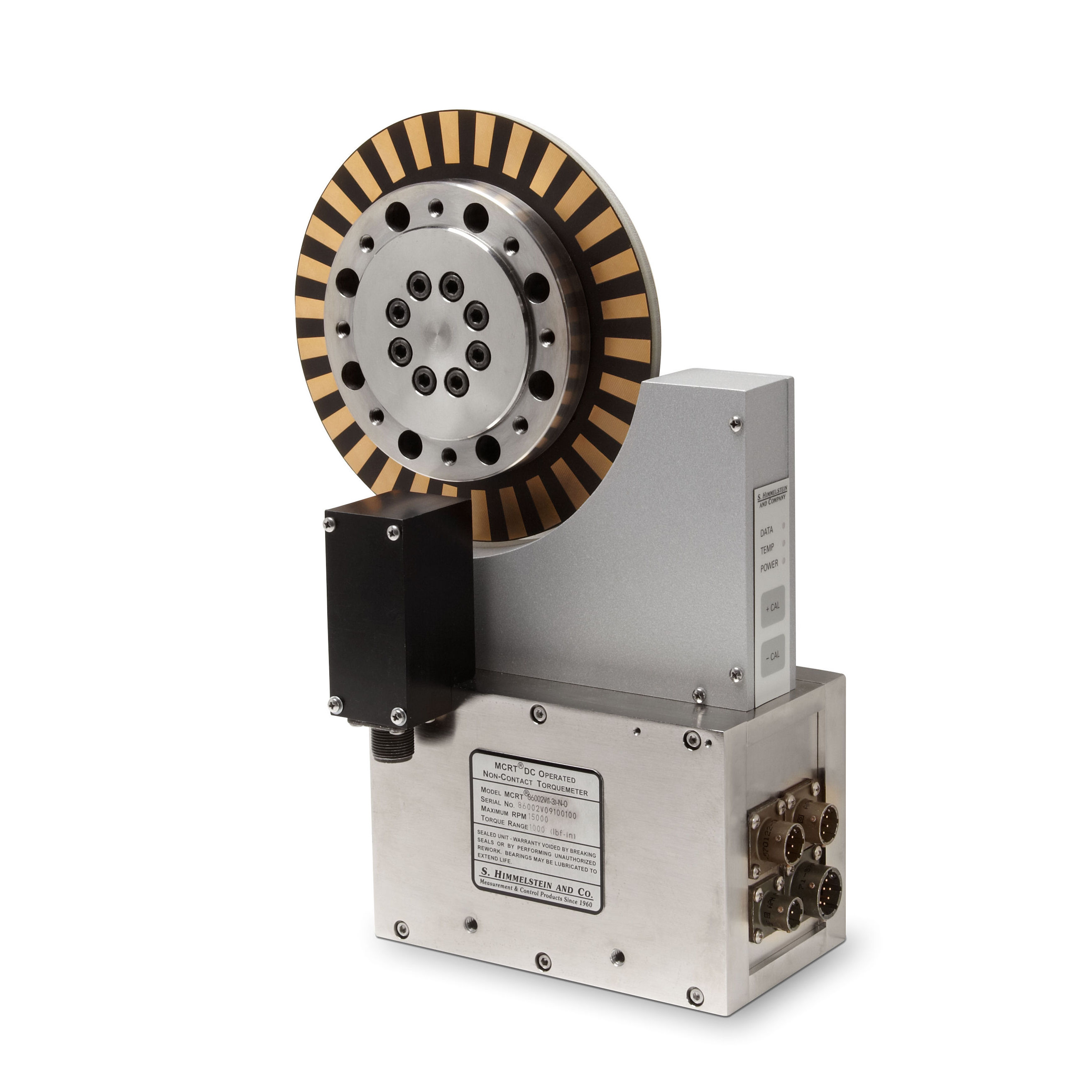

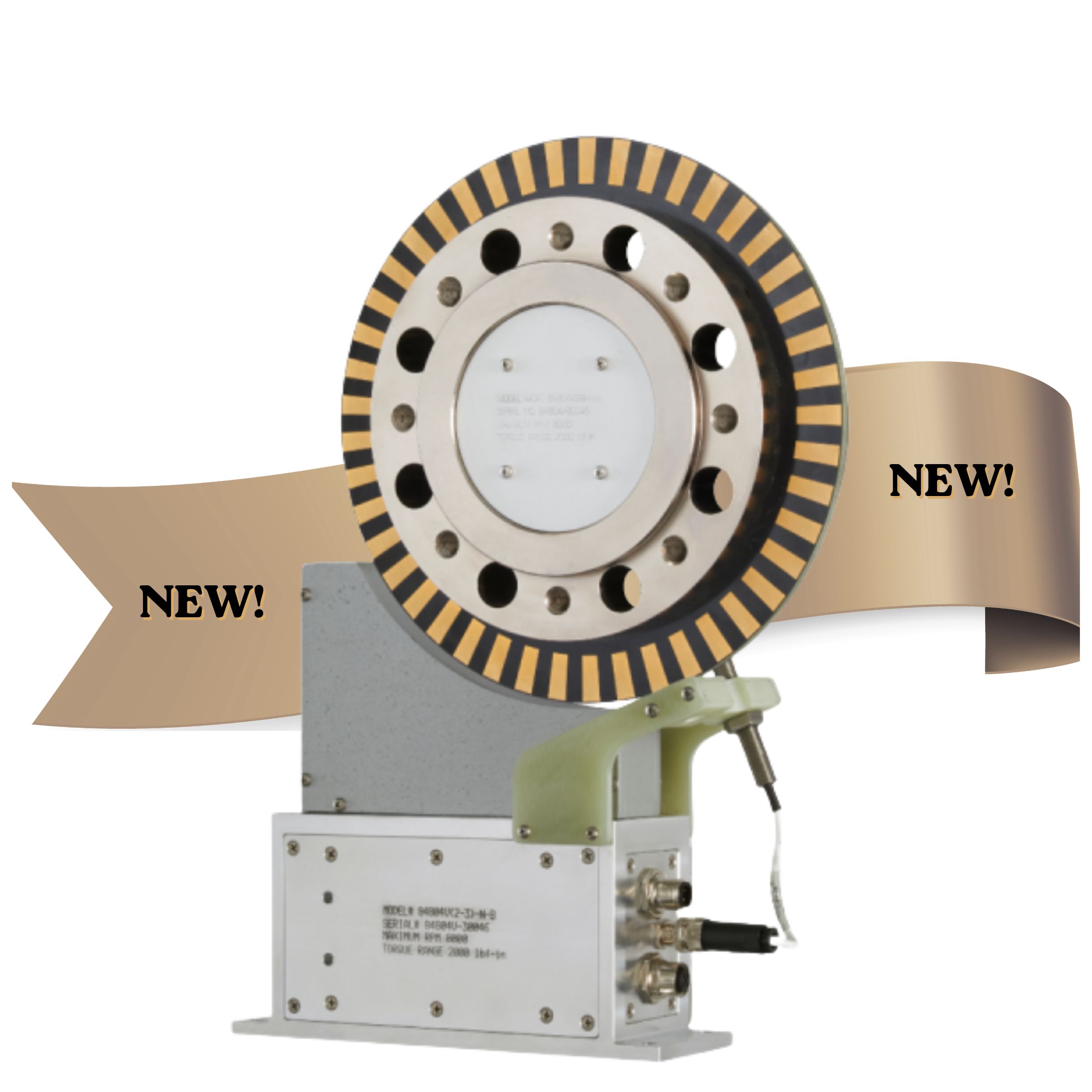

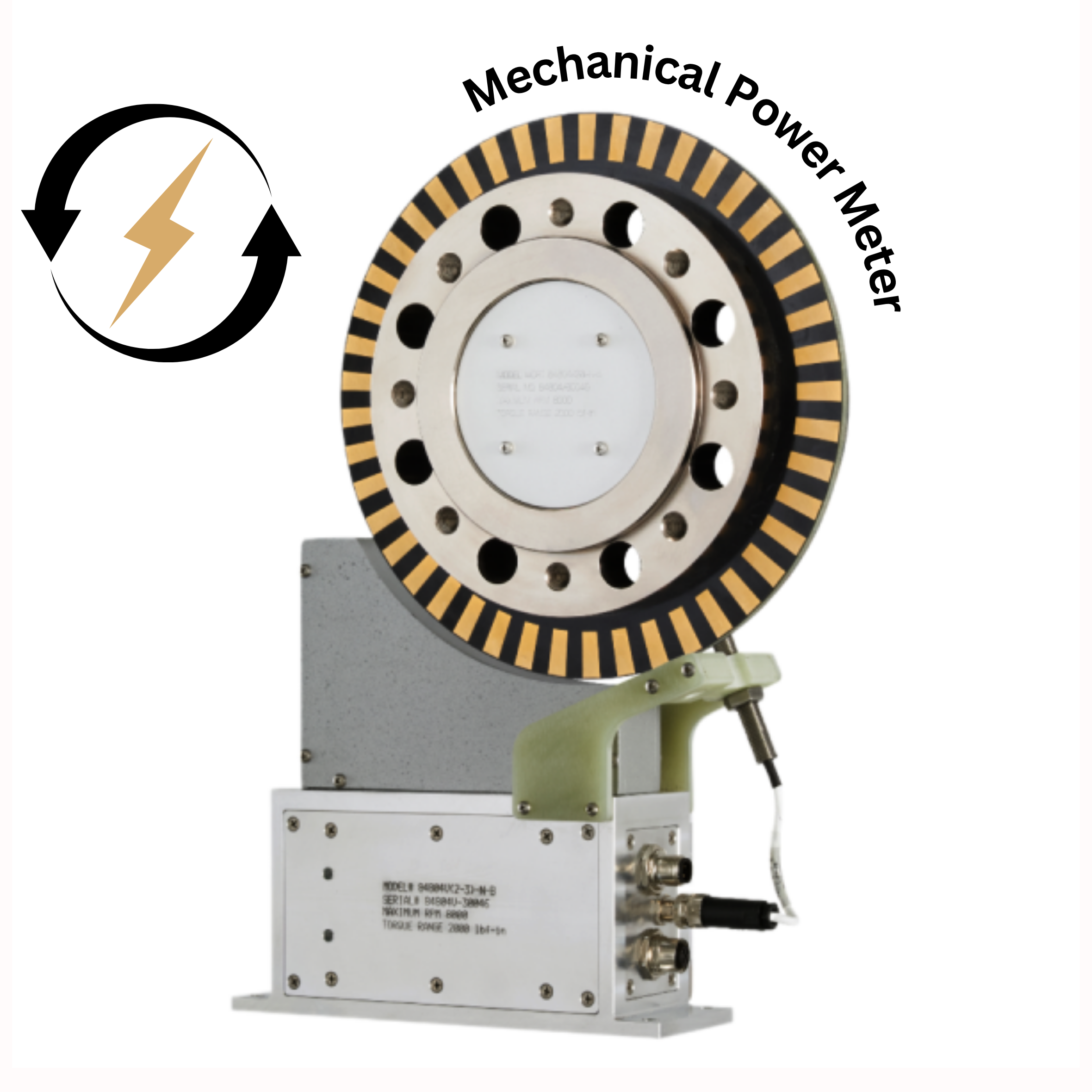

MCRT®86000V and 87000V Torque Flanges output shaft torque with 0.01% resolution. Digital, Analog and FM formats are simultaneously available. Industries highest overload and overrange ratings assure safety and accuracy even when the driveline has high peak to average torque ratios. Important features include non-critical installation, temperature data, max/min capture and absence of manual adjustments.
|
| |
 |
|
|

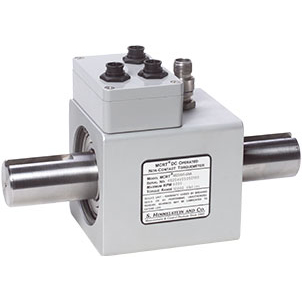

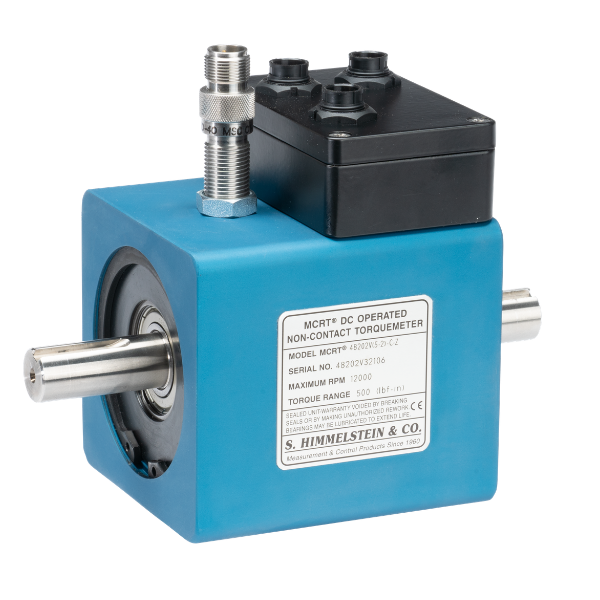

Representing a true breakthrough in the price and performance of dynamic rotating torque measurements, the MCRT® 48200V Series Compact Digital Torque Transducers offer 0.2%, or optional 0.1%, accuracy in a reduced footprint. Torque signal outputs are analog, ±10V or ±5V, and digital via resident com port, PC interface software is furnished. Available torque ranges are 25 to 10,000 lbf-in (2.83 to 1,130 Nm).
|
| |
 |
|
|

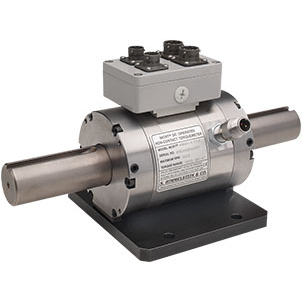

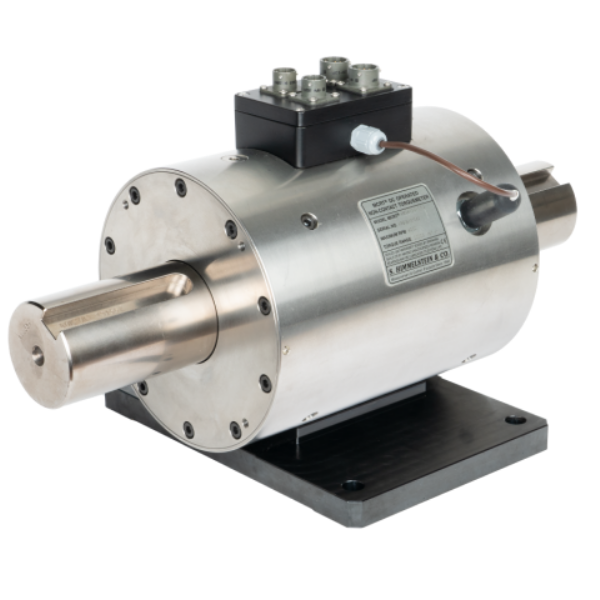

MCRT® Digital Torque Transducers output ±10V or ±5V
analogs of torque, speed (optional) and power (optional) as well as engineering unit data via a
resident com port. PC interface software furnished. They are available in two accuracy grades,
0.05% and 0.1%. Ranges from 25 to 4,000,000 lbf-in.
|
| |
 |
|
|

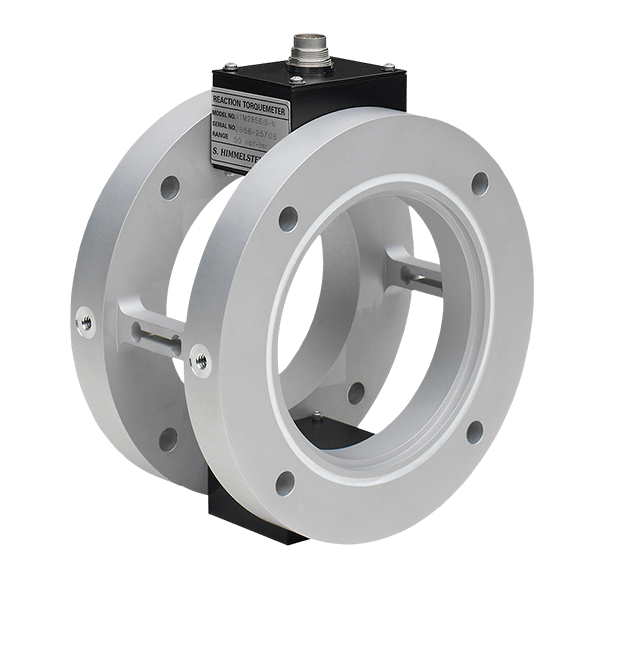

2200 Series solid flanged reaction torque transducers with
high accuracy, high stiffness and low torsional deflection. Available capacities are from 10 ozf-in
to 100,000 lbf-in with either a mV/V or ±10 volt dc signal output.
|
